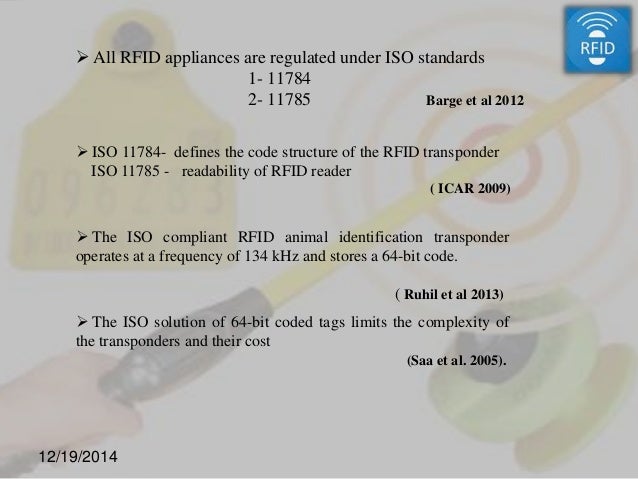

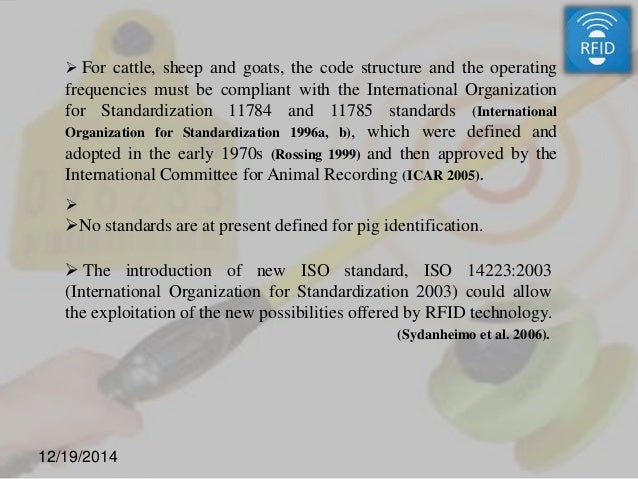

FDX-B Animal Identification Protocol description. FDX-B protocol is a common format used in transponders in applications requiring animal identification, but is also often used in non animal related industrial identification. It is fully described in the ISO 11784 & 11785 standards publicly available. The description of ISO 11784 & 11785 discuss two forms of transponder encoding, and these are FDX-B (full duplex), and HDX (half duplex).

Cal specifications of ISO Standards 11784 and 11785, including both FDX-B. Tions of reading and transmitting the identification code contained within the. Lagu yang dinyanyikan duet oleh grup monata mp3.

Here we will discuss the FDX-B protocol description. For a description of HDX protocol see. FDX-B frequency and modulation. FDX-B protocol based transponders are defined to operate in the 134.2kHz band, and employ a biphase encoding scheme to transmit their information.

The data bit rate used is always fc/32. Biphase encoding schemes modulate the RF field so that there is a transition at the beginning of each bit boundary. A logic 0 state has a transition in the middle of the bit period, while a logic 1 state has no transition during the entire bit period. For FDX-B 1 bit length corresponds to 32 cycles of the activated field of the reader. FDX-B data structure. FDX-B protocol based transponders carry 128 bits of data. The structure of this data consists of: • 11 header bits (0) Lsb bit first.

• 64 identification bits with 8 control bits. • 16 bits of CRC with 2 control bits.

• 24 bits of extended data with 3 control bits. The control bits are simple logic 1 bits that appear after every 8 bits. They are used to differentiate the 11 bit header from the remaining data. Below is shown an example of the FDX-B data structure. Msb lsb 1 0 0 0 0 0 0 0 0 0 0 Header pattern.

1 1 1 1 1 0 0 0 0 1 0 0 0 0 0 0 1 1 38 bit (12 digit) National code. 1 0 0 0 0 0 0 0 0 eg. 08 (decimal). 1 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 10 bit (3 digit) Country code. 1 1 1 1 1 1 0 0 1 eg.

999 (decimal). 1 - - - - - - - 1 1 bit data block status flag. 1 1 - - - - - - - 1 bit animal application indicator.

1 1 1 0 1 0 1 1 0 16 bit checksum. 1 0 1 0 1 1 1 0 1 1 0 1 0 1 0 1 1 0 24 bits of extra data if present. 1 0 0 1 1 0 1 0 0 eg.

1 0 0 0 1 0 0 1 0 When the Tag enters the electromagnetic field transmitted by the RFID reader it draws power from the field and will commence transmitting its data as shown above with the least significant bit (lsb) first. The 11 bit header pattern is transmitted to indicate the beginning of the data block. This is followed by 38 bits of the identification code. For an animal application this will be the identity code of the animal. This is a unique 12 digit decimal code for each animal.

After every 8 bits is sent a logic 1 bit is inserted to differentiate data from the header sequence. This is followed by the 10 bit country code. A country code is a 3 decimal digit value used to refer to individual manufacturers. A code of 999 is used to indicate that the transponder is a test transponder and need not contain a unique identification number. The 1 bit data block status is an indicator flag to indicate whether an additional data block exists. A value of 1 indicates that the transponder contains an additional 24 bit data block.

Otherwise it is 0. Following this we have 14 reserved bits allocated for future use. The animal application indicator is a single bit indicating that the transponder is used for animal identification. This value is set to 1 to indicate an animal identification application, and 0 otherwise.

The preceding 64 bit block (excluding control bits) is then used to calculate a 16 bit checksum. The calculation for this CRC checksum is defined in ISO 11784 & 11785 and is included after the animal status bit. After the CRC check bits we have the extra data block. This data block exists if the data block status flag is 1. When the data block status flag is 0 this value will be 000000. Download megaman x4 full. The data block may be used to append additional data relevant to the individual application.
